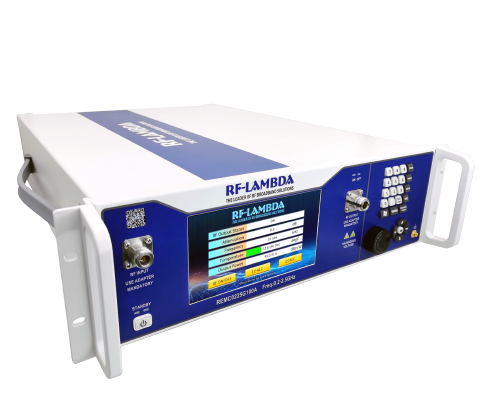

REMC0225G100A
EMC Benchtop RF System Amplifier
FEATURES
- High peak to average handling capability
- High linearity and low noise figure
- Convenient AC Power Input
- Integrated Heat Sink and Fan
- All specifications can be modified upon request
- Power: 110V / 220V
- Datasheet Control Software
- Performance
- Product Highlights
PERFORMANCE
Frequency
0.200 ~ 2.500 GHz
Saturated Power
49.00 dBm typical
Gain
55 dB
Gain Variation
dB
Noise Figure
8.00 dB
Product Highlights
Cutting edge GaN technology powers this benchtop amplifier. With exceptional performance and an easy to use design, this unit has a broad range of applications - including Aerospace, Military, and Telecom Infrastructure projects.
TYPICAL APPLICATIONS
1. Test and Measurement
2. Wireless Communications
3. Military and Aerospace
