RAMP00G30GA

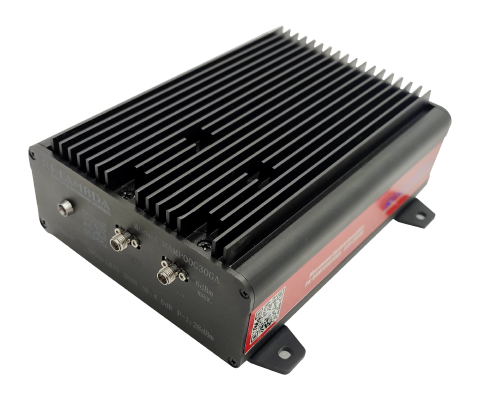

Benchtop RF System AC Amplifier
FEATURES
- High peak to average handling capability
- High linearity and low noise figure
- Convenient AC Power Input
- Integrated Heat Sink and Fan
- All specifications can be modified upon request
- Power: 110V / 220V
- Waterproof Equipment Case: IP67 (Optional)
- Datasheet
- Performance
- Product Highlights
PERFORMANCE
Frequency
0.010 ~ 31.500 GHz
Saturated Power
28.00 dBm typical
Gain
35 dB
Gain Variation
2.00 dB
Noise Figure
5.00 dB
Product Highlights
Cutting edge GaN technology powers this benchtop amplifier. With exceptional performance and an easy to use design, this unit has a broad range of applications - including Aerospace, Military, and Telecom Infrastructure projects.
TYPICAL APPLICATIONS
1. Test and Measurement
2. Wireless Communications
3. Military and Aerospace
